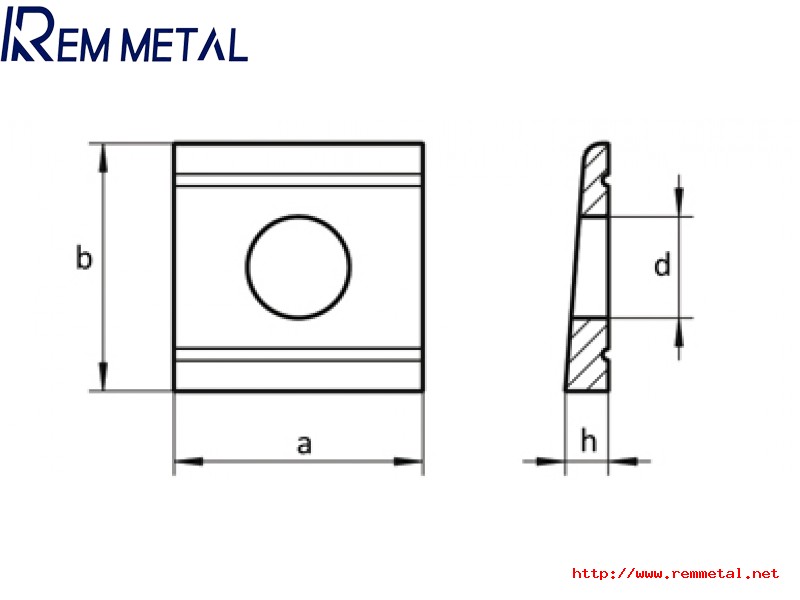

DIN 434 U PULLAR
| Nominal Diş Çapı |
M8 |
M10 |
M12 |
M16 |
M20 |
M22 |
M24 |
M27 |
| d |
Minimum |
9,0 |
11,0 |
13,5 |
17,5 |
22,0 |
24,0 |
26,0 |
30,0 |
| Maksimum |
9,36 |
11,43 |
13,93 |
17,93 |
22,52 |
24,52 |
26,52 |
30,52 |
| A |
Nominal Boyut |
22 |
22 |
26 |
32 |
40 |
44 |
56 |
56 |
| Minimum |
20,0 |
20,0 |
24,0 |
29,5 |
37,5 |
41,5 |
53,0 |
53,0 |
| Maksimum |
24,0 |
24,0 |
28,0 |
34,5 |
42,5 |
46,5 |
59,0 |
59,0 |
| b |
Nominal Boyut |
22 |
22 |
30 |
36 |
44 |
50 |
56 |
56 |
| Minimum |
21,35 |
21,35 |
29,35 |
35,20 |
43,20 |
49,20 |
55,05 |
55,05 |
| Maksimum |
22,65 |
22,65 |
30,65 |
36,80 |
44,80 |
50,80 |
56,95 |
56,95 |
| e |
Ref. |
2,90 |
2,90 |
3,70 |
4,45 |
5,25 |
6,00 |
6,26 |
6,26 |
| h |
Nominal Boyut |
3,80 |
3,80 |
4,90 |
5,90 |
7,00 |
8,00 |
8,50 |
8,50 |
| Minimum |
3,20 |
3,20 |
3,90 |
4,90 |
6,00 |
7,00 |
7,30 |
7,30 |
| Maksimum |
4,40 |
4,40 |
5,90 |
6,90 |
8,00 |
9,00 |
9,70 |
9,70 |
| r |
1,60 |
1,60 |
2,00 |
2,40 |
2,80 |
3,20 |
3,20 |
3,20 |
| t |
0,50 |
0,50 |
0,70 |
0,80 |
0,90 |
1,00 |
1,00 |
1,00 |
| Ağırlık/ gr |
9,57 |
8,85 |
18,20 |
31,40 |
56,90 |
82,30 |
128,00 |
119,00 |
| |
|
|
|
|
|
|
|
|
|
| Malzeme: Çelik, Üreticinin tercihine göre çeşitli. sertlik: 100 HV10 ila 250 HV10 |
|
